Home > Solid State Relays (S.S.R) > Solid State Relay KS Series

Solid State Relay(S.S.R) KS Series (Mini TYPE) (DC-DC)
AC SOLID STATE RELAY
KS0602D DC—DC
KS SERIES
SPECIFICATIONS

MODEL
NO.
CONTROL VOLTAGE
RANGE
MUST TURN
OFF VOLTAGE
INPUT
IMPEDANCE
MAX LOAD
CURRENT
LOAD VOLTAGE
RANGE
MIN BLOCKING
VOLTAGE
MAX OFF-STATE
LEAKAGE
FREQUENCY
RANGE
MAX 1-CYCLE
PEAK SURGE
CATALOG DOWNLOAD
KS0602D DC-DC
3 TO 32 VDC
MAX10 VDC
1.5Kohm
2 A
3~60VDC
600 VAC
LESS 5 mA
47~70Hz
20A

MODEL
NO.
MAX OFF
STATE dv/dt
MAX ON-STATE
VOLTAGE DROP
ISOLATE
IMPEDENCE
DIELECTRIC STRENGTH
INPUT-OUTPUT
DIELECTRIC STRENGTH
INPUT,OUTPUT-CASE
TURN ON
TIME
TURN OFF
TIME
CAPACITANCE
IN-OUT
WEIGHT (g)
KS0602D DC-DC
100 SEC
1.5VAC
ohm
2500 VACrms
___
LESS 2 mSec
LESS 1/2 AC CYCLE
LESS 15 PF
6 g

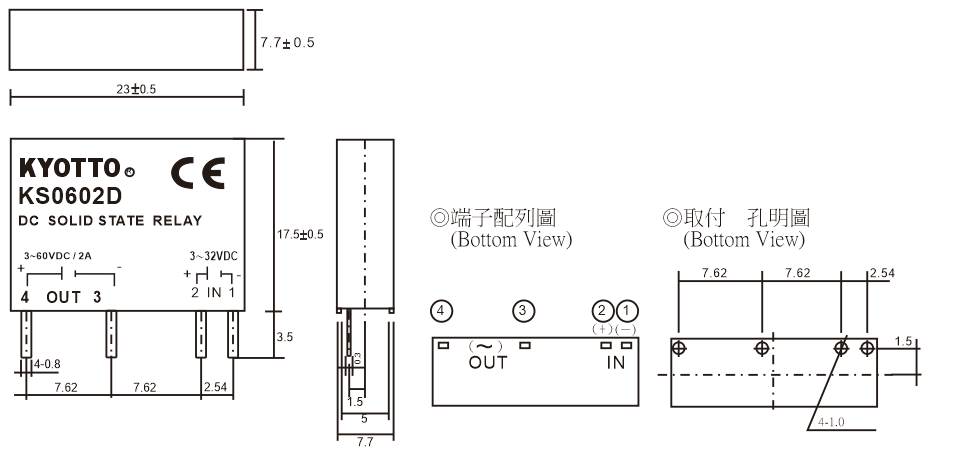

OUTLINE DIMENSIONS
EQUIVALENT CIRCUIT
CHARACTERISTIC CURVES
