Home > Solid State Relays (S.S.R) > Solid State Relay KM Series

Solid State Relay(S.S.R) KM Series (AC - AC)
AC SOLID STATE RELAY

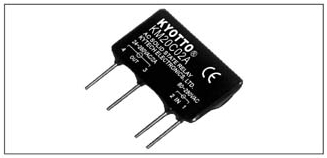

KM20C02A
KM20C04A
KM20C06A
KM SERIES
SPECIFICATIONS

MODEL
NO.
CONTROL VOLTAGE
RANGE
MUST TURN
OFF VOLTAGE
INPUT
IMPEDANCE
MAX LOAD
CURRENT
LOAD VOLTAGE
RANGE
MIN BLOCKING
VOLTAGE
MAX OFF-STATE
LEAKAGE
FREQUENCY
RANGE
MAX 1-CYCLE
PEAK SURGE
CATALOG DOWNLOAD
KM20C02A
80 TO 280 VAC
MAX 1.0 VDC
1.5 Kohm
2A
24-280VAC
600VAC
LESS 5 mA
47~70Hz
30A
KM20C04A
80TO 280VAC
MAX 1.0 VDC
1.5 Kohm
4A
24-280VAC
600VAC
LESS 5 mA
47~70Hz
50A
KM20C06A
80TO 280VAC
MAX 1.0 VDC
1.5 Kohm
6A
24-280VAC
600VAC
LESS 5 mA
47-70Hz
60A

MODEL
NO.
MAX OFF
STATE dv/dt
MAX ON-STATE
VOLTAGE DROP
ISOLATE
IMPEDENCE
DIELECTRIC STRENGTH
INPUT-OUTPUT
DIELECTRIC STRENGTH
INPUT,OUTPUT-CASE
TURN ON
TIME
TURN OFF
TIME
CAPACITANCE
IN-OUT
WEIGHT (g)
KM20C02A
100 SEC
1.5VAC
ohm
4000 VACrms
______
LESS 2 mSec
LESS 1/2 AC CYCLE
LESS 15 PF
10 g
KM20C04A
100 SEC
2.0VAC
ohm
4000 VACrms
______
LESS 2 mSec
LESS 1/2 AC CYCLE
LESS 15 PF

12 g

KM20C06A
100 SEC
2.0VAC
ohm
4000 VACrms
______
LESS 2 mSec
LESS 1/2 AC CYCLE
LESS 15 PF
12 g

OUTLINE DIMENSIONS

EQUIVALENT CIRCUIT

CHARACTERISTIC CURVES
Attention:
In order to be in compliance with the EMC
Directive an additional X2 capacitor at the
output is requried if the SSR is operated as
single component. In case the SSR is
incorporated in an appliance the existing
EMI filter may provide the required EMI
suppresion. The X2 capacitor must be
placed as close as possible to the output
temminats. See also above.
