Home > Solid State Relays (S.S.R) > K3P20R**DA(DC-AC) (280VAC)

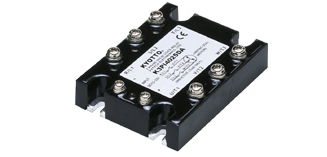

K3P20R**DA(DC-AC) (280VAC)
AC SOLID STATE RELAY
K3P20R25AA
K3P20R40AA
K3P20R50AA
K3P20R75AA
K3P20R90AA
K3P20R100AA
K3P20R125AA
( INDUCTIVE LOAD ONLY )
3 PHASE SERIES



SPECIFICATIONS
MODEL
NO.
CONTROL
IMPEDANCE
MUST TURN
OFF VOLTAGE
INPUT
IMPEDANCE
MAX LOAD
CURRENT
LOAD VOLTAGE
RANGE
MIN BLOCKING
VOLTAGE
MAX OFF-STATE
LEAKAGE
FREQUENCY
RANGE
MAX 1-CYCLE
PEAK SURGE
CATALOG DOWNLOAD
K3P20R25AA
80-280VAC
10VAC
1.5Kohm
25A
24-280VAC
600VAC
LESS 10 mA
47~63Hz
315A
K3P20R40AA
80-280VAC
10VAC
1.5Kohm
40A
24-280VAC
600VAC
LESS 10 mA
47-63Hz
450A
K3P20R50AA
80-280VAC
10VAC
1.5Kohm
50A
24-280VAC
600VAC
LESS 10 mA
47-63Hz
560A
K3P20R75AA
80-280VAC
10VAC
1.5Kohm
75A
24-280VAC
600VAC
LESS 10 mA
47~63Hz
750A
K3P20R90AA
80~280VAC
10VAC
1.5Kohm
90A
24-280VAC
600VAC
LESS 10 mA
47~63Hz
900A
K3P20R100AA
80-280VAC
10VAC
1.5Kohm
100A
24-280VAC
600VAC
LESS 10 mA
47-63Hz
1030A

MODEL
NO.
MAX OFF
STATE dv/dt
MAX ON-STATE
VOLTAGE DROP
ISOLATE
IMPEDENCE
DIELECTRIC STRENGTH
INPUT-OUTPUT
DIELECTRIC STRENGTH
INPUT,OUTPUT-CASE
TURN ON
TIME
TURN OFF
TIME
CAPACITANCE
IN-OUT
WEIGHT (g)
K3P20R25AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g
K3P20R40AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g
K3P20R50AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g
K3P20R75AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g
K3P20R90AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g
K3P20R100AA
500 SEC
1.6Vrms
ohm
2500Vrms
2500Vrms
LESS1/2mSee
LESS1/2cycle
LESS473pf
600 g

OUTLINE DIMENSIONS (unit:mm)
EQUIVALENT CIRCUIT

CHARACTERISTIC CURVES
