K3P Series

Solid state relay solutions grouped by load voltage for quick engineering selection.
56 Models Industrial Grade • SSR
K3P

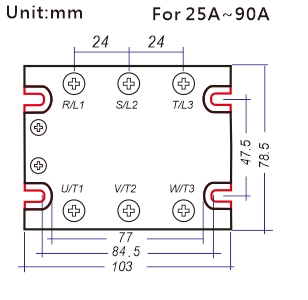

K3P image 2

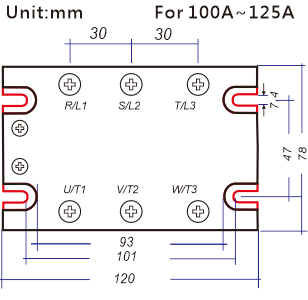

K3P image 3
SSR Engineering Summary
Control Voltage Groups: – 12-32VDC– 6-32VDC– 80-280VAC
Load Voltage Groups: – 24-280VAC– 48-480VAC
Current Range: 25A – 125A

K3P Series Selection Check

Narrow the range by load voltage and current, then confirm control voltage, switching type, and document version.

56 models
Load condition Confirm AC / DC, single-phase / three-phase, load voltage, and maximum load current.
Control signal Match control voltage, control type, and zero-cross, random, or phase-control operation.
Thermal & accessories Review heatsink, fan, and safety cover needs by current, ambient temperature, and mounting style.
Document check Download the datasheet or send application details for KYOTTO model confirmation.
View Documents Confirm With KYOTTO Back to SSR Selection

Engineering Check Before Order

The series page defines the model range. Before purchasing, review thermal design, accessories, document version, and application conditions.

Model selector Use load voltage, control voltage, current, and switching type to narrow the model list. Open Selector
Heatsink review Select heatsinks by SSR current, ambient temperature, and cabinet space. View Heatsinks
Accessory check Confirm safety covers, DIN rail clips, and cooling fans before ordering. View Accessories

Load — 24-280VAC

Part Number Phase Function Control Type Control Voltage Load Type Load Voltage Load Current Switching Docs
Zero Cross 14 Models
Control Type — AC 7
K3P20C25AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 25A Zero Cross Data
K3P20C40AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 40A Zero Cross Data
K3P20C50AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 50A Zero Cross Data
K3P20C75AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 75A Zero Cross Data
K3P20C90AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 90A Zero Cross Data
K3P20C100AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 100A Zero Cross Data
K3P20C125AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 125A Zero Cross Data
Control Type — DC 7
K3P20C25DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 25A Zero Cross Data
K3P20C40DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 40A Zero Cross Data
K3P20C50DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 50A Zero Cross Data
K3P20C75DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 75A Zero Cross Data
K3P20C90DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 90A Zero Cross Data
K3P20C100DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 100A Zero Cross Data
K3P20C125DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 125A Zero Cross Data
Random Access 14 Models
Control Type — AC 7
K3P20R25AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 25A Random Access Data
K3P20R40AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 40A Random Access Data
K3P20R50AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 50A Random Access Data
K3P20R75AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 75A Random Access Data
K3P20R90AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 90A Random Access Data
K3P20R100AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 100A Random Access Data
K3P20R125AA
Three Phase Standard AC 80-280VAC AC 24-280VAC 125A Random Access Data
Control Type — DC 7
K3P20R25DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 25A Random Access Data
K3P20R40DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 40A Random Access Data
K3P20R50DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 50A Random Access Data
K3P20R75DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 75A Random Access Data
K3P20R90DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 90A Random Access Data
K3P20R100DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 100A Random Access Data
K3P20R125DA
Three Phase Standard DC 6-32VDC AC 24-280VAC 125A Random Access Data

Load — 48-480VAC

Part Number Phase Function Control Type Control Voltage Load Type Load Voltage Load Current Switching Docs
Zero Cross 14 Models
Control Type — AC 7
K3P40C25AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 25A Zero Cross Data
K3P40C40AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 40A Zero Cross Data
K3P40C50AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 50A Zero Cross Data
K3P40C75AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 75A Zero Cross Data
K3P40C90AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 90A Zero Cross Data
K3P40C100AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 100A Zero Cross Data
K3P40C125AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 125A Zero Cross Data
Control Type — DC 7
K3P40C25DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 25A Zero Cross Data
K3P40C40DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 40A Zero Cross Data
K3P40C50DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 50A Zero Cross Data
K3P40C75DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 75A Zero Cross Data
K3P40C90DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 90A Zero Cross Data
K3P40C100DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 100A Zero Cross Data
K3P40C125DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 125A Zero Cross Data
Random Access 14 Models
Control Type — AC 7
K3P40R25AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 25A Random Access Data
K3P40R40AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 40A Random Access Data
K3P40R50AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 50A Random Access Data
K3P40R75AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 75A Random Access Data
K3P40R90AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 90A Random Access Data
K3P40R100AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 100A Random Access Data
K3P40R125AA
Three Phase Standard AC 80-280VAC AC 48-480VAC 125A Random Access Data
Control Type — DC 7
K3P40R25DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 25A Random Access Data
K3P40R40DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 40A Random Access Data
K3P40R50DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 50A Random Access Data
K3P40R75DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 75A Random Access Data
K3P40R90DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 90A Random Access Data
K3P40R100DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 100A Random Access Data
K3P40R125DA
Three Phase Standard DC 12-32VDC AC 48-480VAC 125A Random Access Data
