KH100 Series
Heatsink - Engineering Overview (all models on one page)
Heatsink for SSR

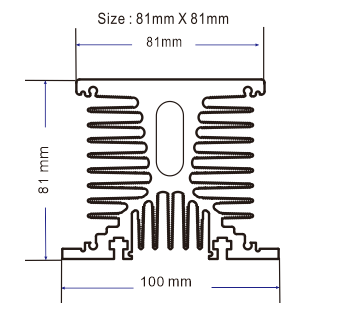

Size Range:
100x45x81 ~ 100x200x81 mm
100x45x81 ~ 100x200x81 mm
Suitable SSR Current:
40A – 125A
40A – 125A
Series Datasheet
Download PDF
↗
KH100 Series
| Model | Size (mm) | Compatible SSR |
|---|---|---|
| KH100-45 |
100x45x81 Suitable SSR: 40A
|
|
| KH100-70 |
100x45x81 Suitable SSR: 50A
|
|
| KH100-100 |
100x100x81 Suitable SSR: 75A
|
|
| KH100-120 |
100x120x81 Suitable SSR: 90A
|
|
| KH100-150 |
100x150x81 Suitable SSR: 100A
|
|
| KH100-200 |
100x200x81 Suitable SSR: 125A
|
