Home > Solid State Relays (S.S.R) > Solid State Relay KB Series (DC - AC)(280VAC)

AC SOLID STATE RELAY

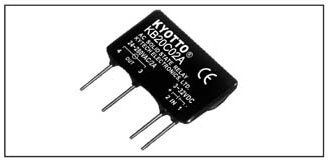

KB20R02A

KB20R03A

KB20R04A

KB20R05A

KB20R06A

KB SERIES

SPECIFICATIONS

MODEL NO.	CONTROL VOLTAGE RANGE	MUST TURN OFF VOLTAGE	INPUT IMPEDANCE	MAX LOAD CURRENT	LOAD VOLTAGE RANGE	MIN BLOCKING VOLTAGE	MAX OFF-STATE LEAKAGE	FREQUENCY RANGE	MAX 1-CYCLE PEAK SURGE	CATALOG DOWNLOAD
KR20R02A	3 TO 32 VDC	MAX 1.0 VDC	1.5 Kohm	2A	24-280VAC	600VAC	LESS 5 mA	47-70Hz	20A
KB20R03A	3 TO 32 VDC	MAX 1.0 VDC	1.5 Kohm	3A	24-280VAC	600VAC	LESS 5 mA	47-70Hz	30A
KB20R04A	3 TO 32 VDC	MAX 1.0 VDC	1.5 Kohm	4A	24-280VAC	600VAC	LESS 5 mA	47-70Hz	40A
KB20R05A	3 TO 32 VDC	MAX 1.0 VDC	1.5 Kohm	5A	24-280VAC	600VAC	LESS 5 mA	47-70Hz	50A
KB20R06A	3 TO 32 VDC	MAX 1.0 VDC	1.5 Kohm	6A	24-280VAC	600VAC	LESS 5 mA	47-70Hz	60A

MODEL NO.	MAX OFF STATE dv/dt	MAX ON-STATE VOLTAGE DROP	ISOLATE IMPEDENCE	DIELECTRIC STRENGTH INPUT-OUTPUT	DIELECTRIC STRENGTH INPUT,OUTPUT-CASE	TURN ON TIME	TURN OFF TIME	CAPACITANCE IN-OUT	WEIGHT (g)
KB20R02A	200 SEC	1.5VAC	ohm	4000VACrms	____	LESS 2 mSec	LESS 1/2 AC CYCLE	LESS 15 PF	10 g
KB20R03A	200 SEC	1.5VAC	ohm	4000VACrms	____	LESS 2 mSec	LESS 1/2 AC CYCLE	LESS 15 PF	12 g
KB20R04A	200SEC	2.0VAC	ohm	4000VACrms	____	LESS 2 mSec	LESS 1/2 AC CYCLE	LESS 15 PF	12 g
KB20R05A	200SEC	2.0VAC	ohm	4000VACrms	____	LESS 2 mSec	LESS 1/2 AC CYCLE	LESS 15 PF	12 g
KB20R06A	200SEC	2.0VAC	ohm	4000VACrms	____	LESS 2 mSec	LESS 1/2 AC CYCLE	LESS 15 PF	12 g

OUTLINE DIMENSIONS

EQUIVALENT CIRCUIT

CHARACTERISTIC CURVES

Attention:

In order to be in compliance with the EMC
Directive an additional X2 capacitor at the
output is requried if the SSR is operated as
single component. In case the SSR is
incorporated in an appliance the existing
EMI filter may provide the required EMI
suppresion. The X2 capacitor must be
placed as close as possible to the output

temminats. See also above.

Kytech Electronics Ltd.
No.68, Ln. 131, Sec. 4, Fudan Rd., Pingzhen City, Taoyuan County 324, Taiwan (R.O.C.)
Tel :886-3-4930055 Fax:886-3-4922455
E-mail: [email protected]
