| AC SOLID STATE RELAY IO-X-0604D SERIES (DC - DC)(1/2/4/8 Port) |
| |
|
AC SOLID STATE RELAY |
IO-X-0604D
|
|
(HEATEA LOAD ONLY) |
IO SERIES |
|
|
| |
| SPECIFICATIONS |
MODEL
NO. |
CONTROL
IMPEDANCE |
MUST TURN
OFF VOLTAGE |
INPUT
IMPEDANCE |
MAX LOAD
CURRENT |
LOAD VOLTAGE
RANGE |
MIN BLOCKING
VOLTAGE |
MAX OFF-STATE
LEAKAGE |
FREQUENCY
RANGE |
MAX 1-CYCLE
PEAK SURGE |
CATALOG DOWNLOAD |
IO-2-0604D
|
3 TO 32 VDC |
MAX 1.0 VDC |
1.5 Kohm |
4A |
3~32VDC |
60VDC |
LESS 1 mA |
47-70Hz |
8.5A |
 |
|
| |
MODEL
NO. |
MAX OFF
STATE dv/dt |
MAX ON-STATE
VOLTAGE DROP |
ISOLATE
IMPEDENCE |
DIELECTRIC STRENGTH
INPUT-OUTPUT |
DIELECTRIC STRENGTH
INPUT,OUTPUT-CASE |
TURN ON
TIME |
TURN OFF
TIME |
CAPACITANCE
IN-OUT |
WEIGHT (g) |
IO-2-0604D |
200  SEC |
1.2Vrms |
 ohm |
2500Vrms |
_______ |
LESS 2mSee
|
LESS 1/2 CYCLE |
LESS 15 PF |
12 g |
|
| |
| PS: X= 1PORT / 2PORT / 4PORT / 8PORT |
| |
| OUTLINE DIMENSIONS(unit:mm) |
Model |
Dimension
(LxWxH)mm |
IO-2-20C04A
IO-2-40C04A |
34x85x51 |
IO-4-20C04A
IO-4-40C04A |
64x85x51 |
IO-8-20C04A
IO-8-40C04A |
124x85x51 |
|
 |
|
| |

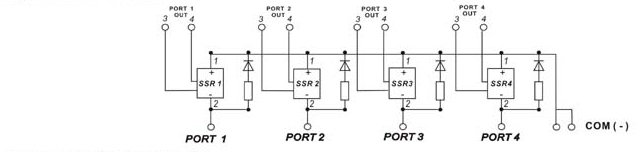

| EQUIVALENT CIRCUIT |
 |
| |
| CHARACTERISTIC CURVES |
 |
Attention: |
|
In order to be in compliance with the EMC
Directive an additional X2 capacitor at the output is requried if the SSR is operated as single component. In case the SSR is incorporated in an appliance the existing
EMI filter may provide the required EMI
suppresion. The X2 capacitor must be
placed as close as possible to the output |
temminats. See also above. |
|
 |
| |
|
 |
 |
|
| |
