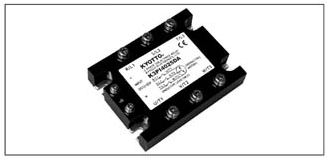

K3P40R**DA(DC-AC)(480VAC)

AC SOLID STATE RELAY

K3P40R25DA

K3P40R40DA

K3P40R50DA

K3P40R75DA

K3P40R90DA

K3P40R100DA

( INUCTIVE LOAD ONLY )

3 PHASE SERIES

SPECIFICATIONS

MODEL NO.	CONTROL IMPEDANCE	MUST TURN OFF VOLTAGE	INPUT IMPEDANCE	MAX LOAD CURRENT	LOAD VOLTAGE RANGE	MIN BLOCKING VOLTAGE	MAX OFF-STATE LEAKAGE	FREQUENCY RANGE	MAX 1-CYCLE PEAK SURGE	CATALOG DOWNLOAD
K3P40R25DA	12TO32VDC	MAX9.5VDC	1.5Kohm	25A	48~480VAC	1200VAC	LESS 10mA	47~63Hz	315A
K3P40R40DA	12TO32VDC	MAX9.5VDC	1.5Kohm	40A	48~480VAC	1200VAC	LESS 10 mA	47~63Hz	450A
K3P40R50DA	12TO32VDC	MAX9.5VDC	1.5Kohm	50A	48~480VAC	1200VAC	LESS 10 mA	47~63Hz	560A
K3P40R75DA	12TO32VDC	MAX9.5VDC	1.5Kohm	75A	48~480VAC	1200VAC	LESS 10mA	47~63Hz	750A
K3P40R90DA	12TO32VDC	MAX9.5VDC	1.5Kohm	90A	48~480VAC	1200VAC	LESS 10mA	47~63Hz	900A
K3P40R100DA	12TO32VDC	MAX9.5VDC	1.5Kohm	100A	48~480VAC	1200VAC	LESS 10 mA	47~63Hz	1000A

MODEL NO.	MAX OFF STATE dv/dt	MAX ON-STATE VOLTAGE DROP	ISOLATE IMPEDENCE	DIELECTRIC STRENGTH INPUT-OUTPUT	DIELECTRIC STRENGTH INPUT,OUTPUT-CASE	TURN ON TIME	TURN OFF TIME	CAPACITANCE IN-OUT	WEIGHT (g)
K3P40R25DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g
K3P40R40DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g
K3P40R50DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g
K3P40R75DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g
K3P40R90DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g
K3P40R100DA	500 SEC	1.6Vrms	ohm	2500Vrms	2500Vrms	LESS1/2cycle	LESS1/2cycle	LESS 473pf	600 g

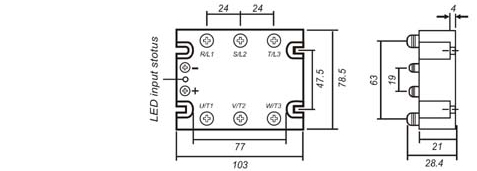

OUTLINE DIMENSIONS (unit:mm)

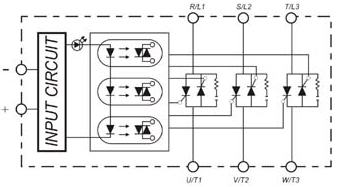

EQUIVALENT CIRCUIT	Example of 3ΦSSR Application

CHARACTERISTIC CURVES
