Home  »  Solid State Relay  »  KO20C02A

KYOTTO SSR Product

KO20C02A Solid State Relay

Series KO - Engineering view with specifications, dimensional drawings, and product documents.

Series KO Single Phase AC Load 2A Zero Cross
KO20C02A

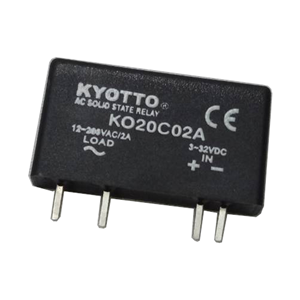

Product View Series product image Front Dimensions Outline drawing Side Dimensions Profile drawing

Product Specifications

  • Part NumberKO20C02A
  • Control TypeDC
  • Control Voltage3-32VDC
  • Load TypeAC
  • Load Voltage12-280VAC
  • Max Load Current2A
  • Switching TypeZero Cross
  • PhaseSingle Phase
Datasheet Ask KYOTTO
Back to Series

Model Confirmation Workflow

Before purchasing or replacing a model, confirm load conditions, control signal, thermal requirements, and document version.

KO20C02A
Load condition Check load type, load voltage, and maximum load current against the equipment requirement.
Control signal Confirm control voltage, control type, and switching method for the control circuit.
Thermal setup Review heatsink, fan, and safety cover needs by current, ambient temperature, and duty cycle.
Document version Download the datasheet to confirm electrical data, dimensions, and terminal layout before inquiry.
Download Datasheet Ask With This Model Back to Series Selection

Application Notes

  • Use this model for AC load switching applications.
  • Confirm load voltage, control voltage, and current rating before selection.
  • Zero Cross operation supports stable panel and machine control design.

Ordering Checkpoints

  • Provide part number, quantity, load condition, and control signal when sending an inquiry.
  • For replacement use, compare terminal layout and dimensions with the drawing.
  • Contact KYOTTO if the application requires special review or equivalent model selection.

Documents & Support

Download the datasheet for detailed electrical information. If your project requires wiring confirmation, load review, or model selection, send the application details to KYOTTO.
